Aluminium Furnace Plant

Aluminum Furnace Plant

Aichelin Unitherm offers a complete line of furnaces to process aluminum, brass and other nonferrous products.

Product details

  • HeatingElectric / Gas Heated
  • Gross heating capacity100 kg/hr to 1500 kg/hr
  • ProcessesT6 with water quenching, T7 with air quenching, T5 with artificial ageing, homogenizing, annealing and stress relieving, removal of sand from castings.
  • Plant TypesContinuous roller hearth furnace, Chain conveyor furnace, Basketless direct part loading furnace.
Request technical consultationDownload product brochure | PDF
Aluminium Furnace
Ultimate in Flexibility and Versatility for the Aluminium Industry

In the field of aluminium heat treatment furnaces Aichelin Unitherm has already supplied T6 furnaces and have the know-how from their group company AFC HOLCROFT USA to manufacture these furnaces in India. Our capabilities include hardening, quenching and tempering lines, aging furnaces, annealing furnaces and sand cast removal furnaces.

We engineer our systems as complete solutions for today’s growing demand to deliver high-quality, dependable throughput while maintaining minimal operating cost. We provide furnace solutions with manual loading and unloading into batch equipment, step-continuous units, or fully automated continuous units.

AFC-Holcroft has experience providing heat-treating processes for the following products:

  • Aluminum wheels for automobiles, trucks, motorcycles and aircraft.

  • Automotive engine blocks, heads, pistons, water pumps, intake manifolds and transmission casings.

  • Automotive and aircraft suspension components

  • Aluminum cylinders such as automobile air bags, SCUBA tanks and fire extinguishers.

  • Aluminum castings, forgings, fabrication and stampings.

Quench System

  • Options available for water, polymer or air quench.

  • Optimum heating, cooling and re-circulating system.

  • Rapid transfer time from the furnace to fully submerged in the quenchant.

  • Specially designed elevator without bearings for trouble free operations and least maintenance.

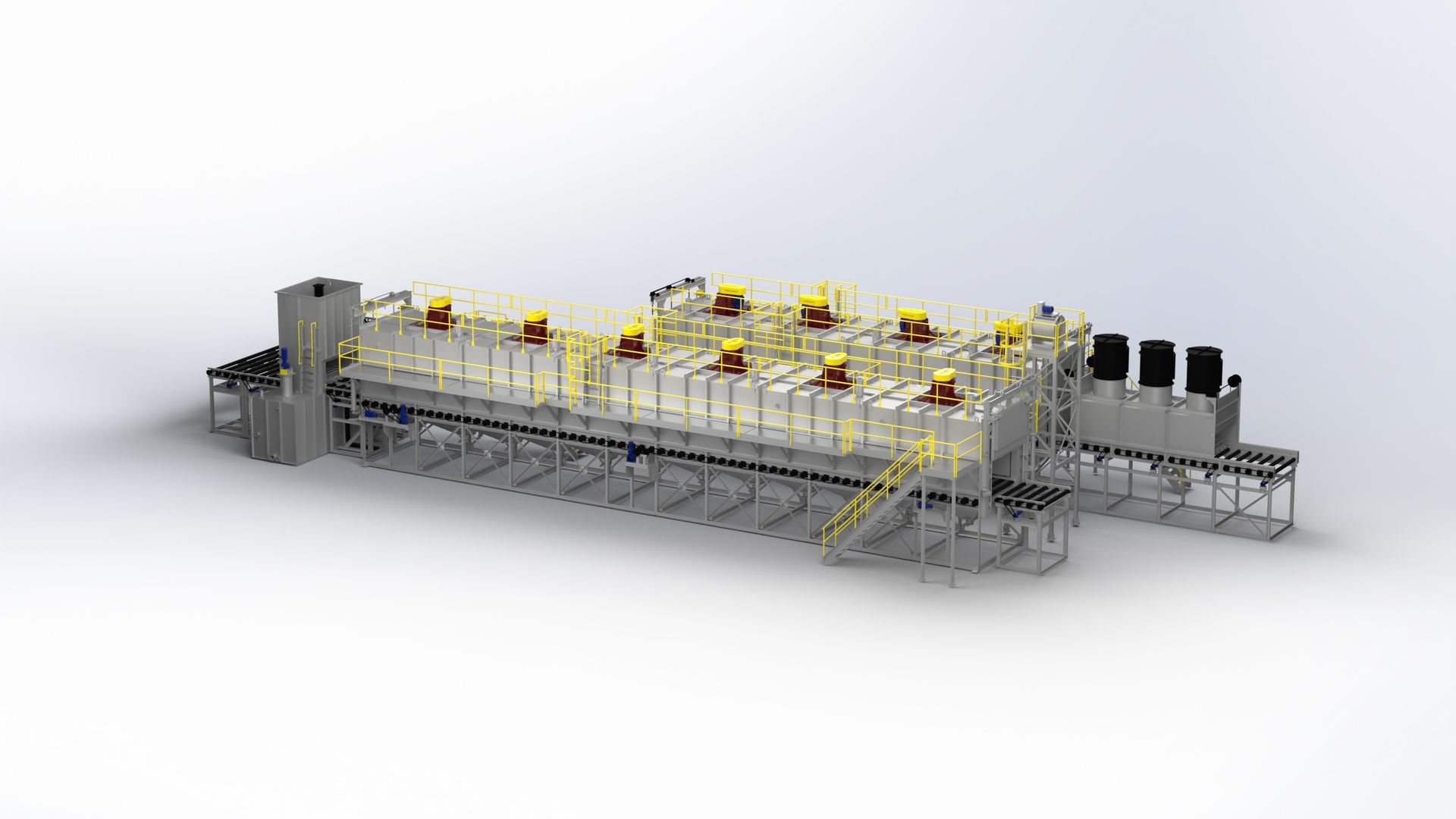

Aluminium T6 Furnace Plant
Gallery
Our Service & Support
Reliable service throughout your entire furnace lifecycle

We support our customers throughout the entire lifecycle of their furnaces – from commissioning to ongoing operation, modernization and digital integration.

Learn more
Frequently Asked Questions
FAQ – Aichelin Unitherm Aluminium Furnaces
Aichelin Unitherm provides continuous roller-hearth furnaces, chain-conveyor furnaces and basketless direct-part-loading furnaces.
The Aichelin Unitherm Aluminium Furnaces are suitable for T6 with water quenching, T7 with air quenching, T5 with artificial aging, homogenizing, annealing and stress relieving, removal of sand from castings.
Advanced recirculating air systems and optimized heating design ensure uniform temperature distribution. The system achieves proven uniformity of up to ±10°F for consistent results.
Aichelin Unitherm offers water, polymer, and air quench systems based on process requirements. Each system is engineered for optimal cooling performance and metallurgical properties.
Yes, complete turnkey installations including furnace, automation and material handling are provided. This ensures seamless integration and efficient plant operation.
Systems include PLC/SCADA-based control, part tracking, and automated material handling.<br>This improves process control, traceability and ease of operation.
Yes, modular furnace design allows easy expansion and upgrades. This ensures long-term adaptability to changing production requirements.
