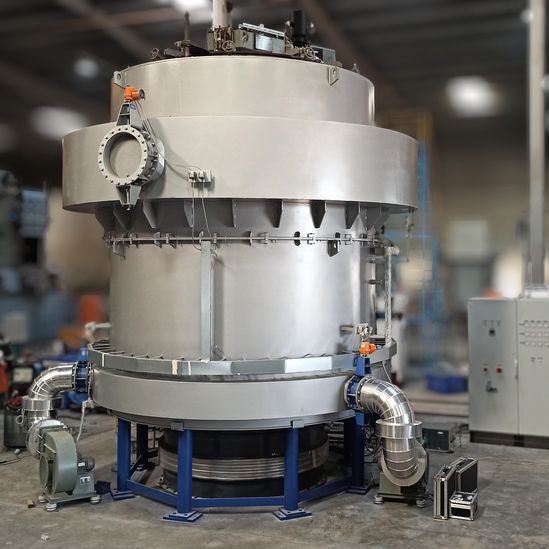

Pit Type Furnace

Pit Type Furnace

Aichelin Unitherm Pit Type Furnaces are engineered for deep case integrity and uniform heat treatment of large, high-value components.

Product details

  • HeatingElectric/ Gas Heated
  • ProcessesGas carburising, case hardening, carbo-nitriding, bright annealing, nitriding, nitrocarburising, H2 dewaxing and sintering.
  • Gross Capacity 1000 to 20,000 kg / batch.
  • Plant AutomationiFACE, SCADA
Request technical consultationDownload Product Brochure
Pit Type furnace
Uniform heat treatment of large components

Aichelin Unitherm offers advanced Pit Type Furnaces engineered for precision heat treatment of large and heavy industrial components requiring consistent metallurgical performance and controlled thermal processing. The furnace is designed with advanced retort technology and optimized gas flow dynamics that ensures superior temperature uniformity and atmosphere consistency throughout the entire charge load.

The furnace is ideal for carburising, nitriding, annealing, and other controlled atmosphere heat treatment processes, delivering high load capacity, repeatable quality, and energy-efficient operation for demanding industrial applications.

Additional technical features

  • Retort type furnace design with close bottom for direct loading on retort.

  • Retort type furnace design with compensator / oil cup for loading heavy parts on hearth.

  • Options for retortless furnace also available.

  • High capacity re-circulation fan for high temperature / Cp uniformity.

  • Quench media: Oil / Salt / Polymer.

  • Electrically heated with special fibrothol heating systems.

  • EndoGas / Methanol, N2 Ammonia, Carbon Dioxide and Hydrogen atmosphere options available.

  • Nitriding potential process control system with O2 / H2 sensors and mass flow meters.

  • Forced rapid cooling for shorter cycle times.

  • Sizes upto 3m Dia x 4m Height.

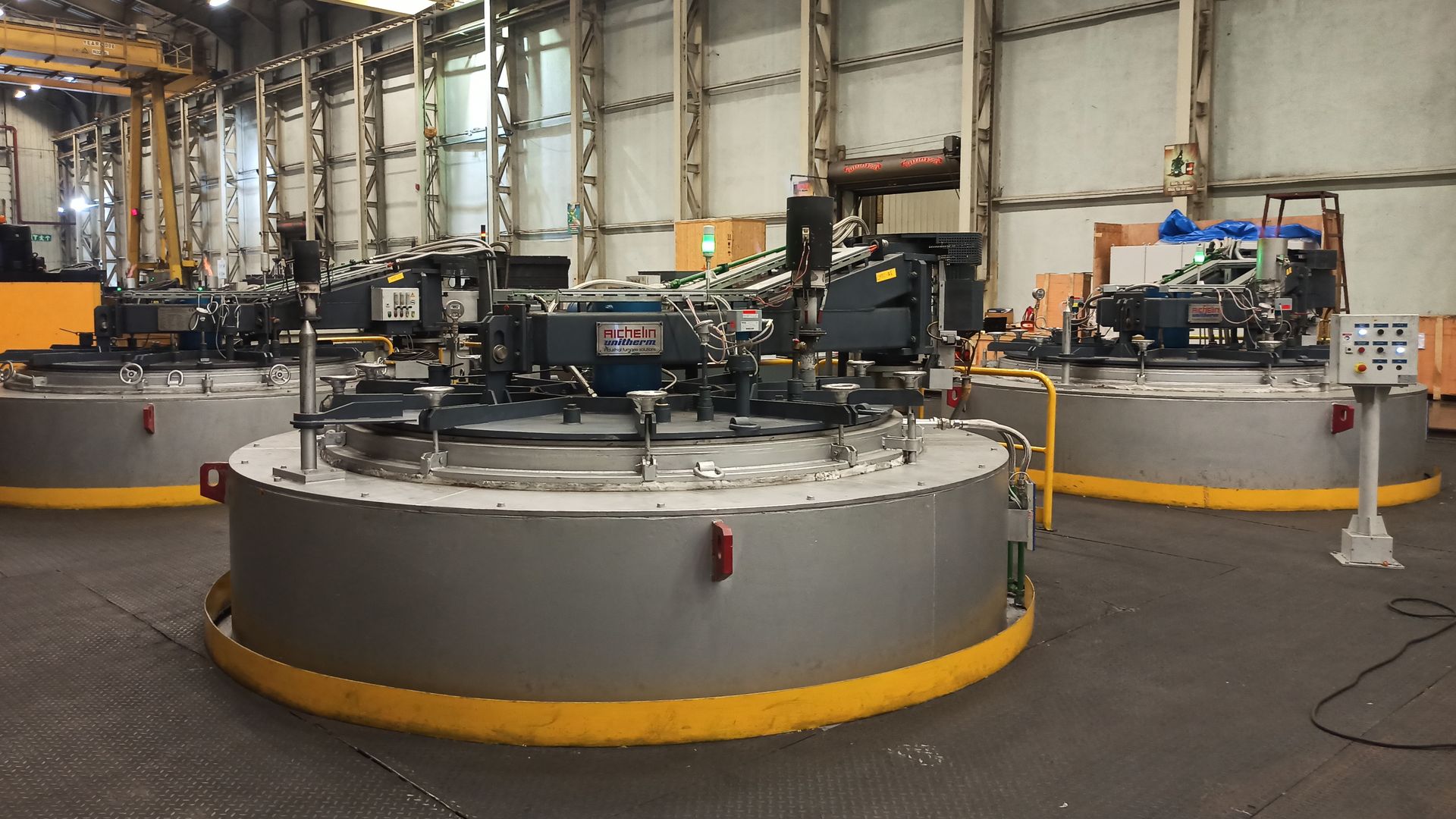

AUPL Pit Type Furnace
Gallery
Our Service & Support
Reliable service throughout your entire furnace lifecycle

We support our customers throughout the entire lifecycle of their furnaces – from commissioning to ongoing operation, modernization and digital integration.

Learn more
Questions & Answers
FAQ – Aichelin Rotary Hearth Furnace systems
It supports carburising, case hardening, carbo-nitriding, nitriding, annealing, sintering, and H₂ dewaxing processes.
The furnace supports EndoGas, Methanol, Nitrogen, Ammonia, Carbon Dioxide, and Hydrogen atmospheres.
Its vertical design enables efficient processing of long components while minimizing distortion, ensuring excellent temperature uniformity and consistent metallurgical results.
Oil, salt, and polymer quenching systems are available based on process requirements.
It can handle loads up to 3 meters in diameter and 4 meters in height.
Features like forced rapid cooling and optimized heat transfer reduce cycle times and increase throughput.
