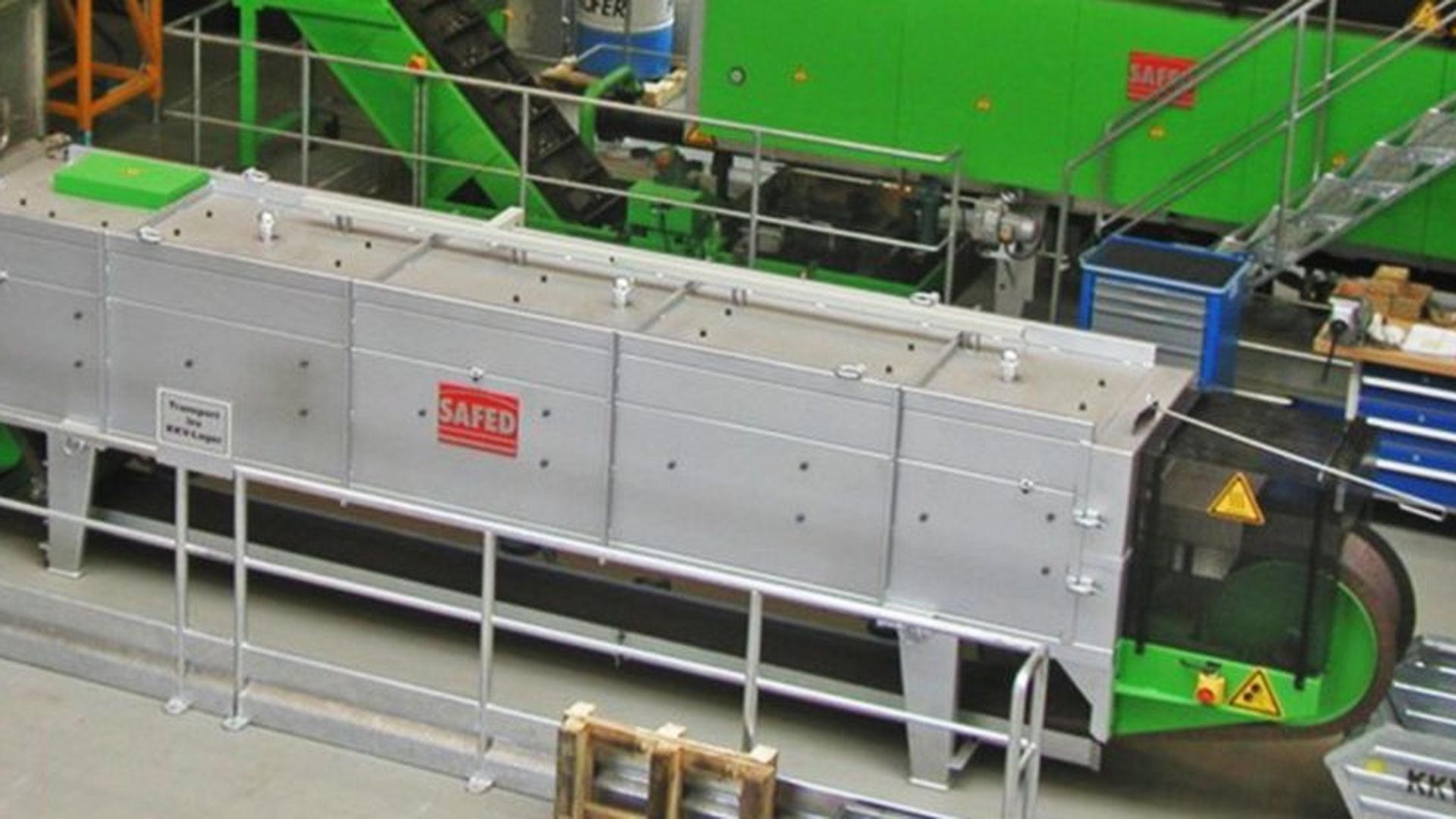

Conveyor Belt BD Series Furnace

Conveyor Belt BD Series Furnace

Safed mesh belt furnaces of the BD series enable continuous heat treatment in atmosphere or air for many processes.

Product details

  • Furnace types Bd, BdC, BdL, BdLT (for protective gas or air processes)
  • HeatingElectric / Gas heated options available.
  • Atmospheres protective gas or air
  • Usable belt width 80 – 1400 mm (up to 2000 mm possible)
  • Temperature range300 – 1150 °C
Request technical consultation

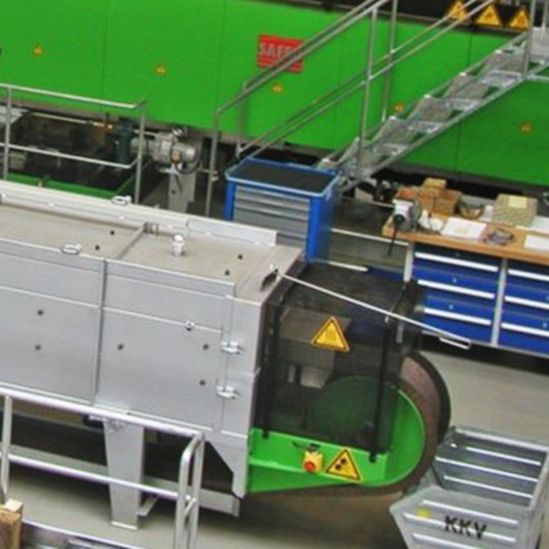

Conveyor Belt BD Series Furnace
Flexible heat treatment for different processes

The mesh belt furnaces of the BD series from Safed are modular in design and designed for a wide range of applications. Depending on the configuration, both processes under protective gas and heat treatments in air can be realized. The modular furnace technology allows adaptation to different component geometries, throughput requirements and temperature ranges.

Additional technical features

  • Gas tight muffle (type BD) for defined atmosphere reduced gas consumption and stable process conditions.

  • Available in type BdC (muffle-less system with protective gas), type BdL (system without protective gas), type BdLT (system without protective gas with subsequent water/polymer quenching).

  • Electric or gas-heated design with high-speed or radiant tube burners.

  • Cooling modules with water jacket, rapid cooling or gas quenching to reduce process times.

  • Optional equipment with gas circulation systems, independent muffle gas flow, automatic loading and FOCOS 4.0 process control system.

Conveyor Belt BD Series Furnace
Our Service & Support
Reliable service throughout your entire furnace lifecycle

We support our customers throughout the entire lifecycle of their furnaces – from commissioning to ongoing operation, modernization and digital integration.

Learn more
Questions & Answers
FAQ – Aichelin Unitherm Conveyor Belt BD Series Furnace
Safed mesh belt furnaces of the BD series are modular furnace systems for continuous heat treatment with or without protective gas and are available as BD, BDC, BDL and BDLT.
With Safed mesh belt furnaces of the BD series, processes such as annealing, bright annealing, brazing, sintering and bluing can be carried out under protective gas or air.
fed mesh belt furnaces of the BD series are available in electrically or gas-heated versions and use NOXMAT® recuperator burners for high energy efficiency.
Cooling in Safed mesh belt furnaces of the BD series is carried out depending on the process via water jacket, rapid cooling or gas quenching with heat exchangers and fans.
Safed mesh belt furnaces of the BD series are available with belt widths from 80 to 1400 mm as standard and special designs up to 2000 mm, covering temperature ranges from 150 to 1150 °C.
Process control in the Safed mesh belt furnace type BD is carried out via a PLC-based system with C-level control, gas circulation systems and oxygen probes for process monitoring. Monitoring and storage of process data can optionally be performed via the FOCOS 4.0 process control system with analysis and reporting functions.<br>
Safed mesh belt furnaces of the BD series enable loading of bulk material or oriented components via hopper, weighing and vibration systems with automatic feeding.<br>
